Enhance industrial laundry
with innovative & intelligent
dosing systems
Scale up and optimise every step in large-scale laundries with
our IoT Multiplex range of dosing systems – the leader in
managing operations with real-time reporting & digital libraries.
Multiplex, the intelligent
large-scale laundry dosing system
The perfect solution for laundries of all sizes.
Choose from a range of versatile models designed to manage up to 12 washing machines or even tunnels.
With the capability to dispense up to 10 different chemicals, it meets the diverse needs of your operation.
Our system offers real-time data and digital services, providing easy access to consumption tracking,
usage statistics, and detailed cost reports, all displayed through a clear and intuitive interface.

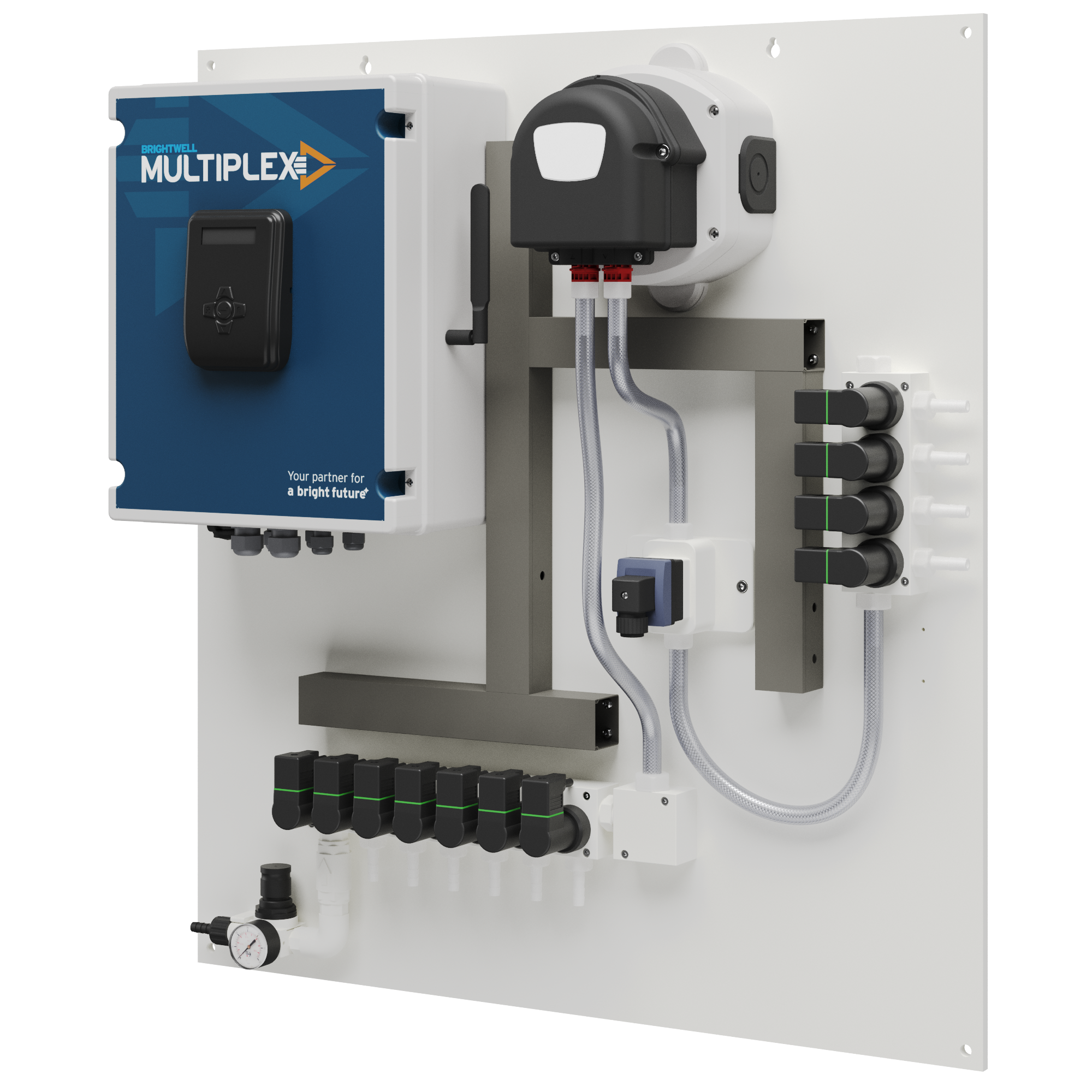

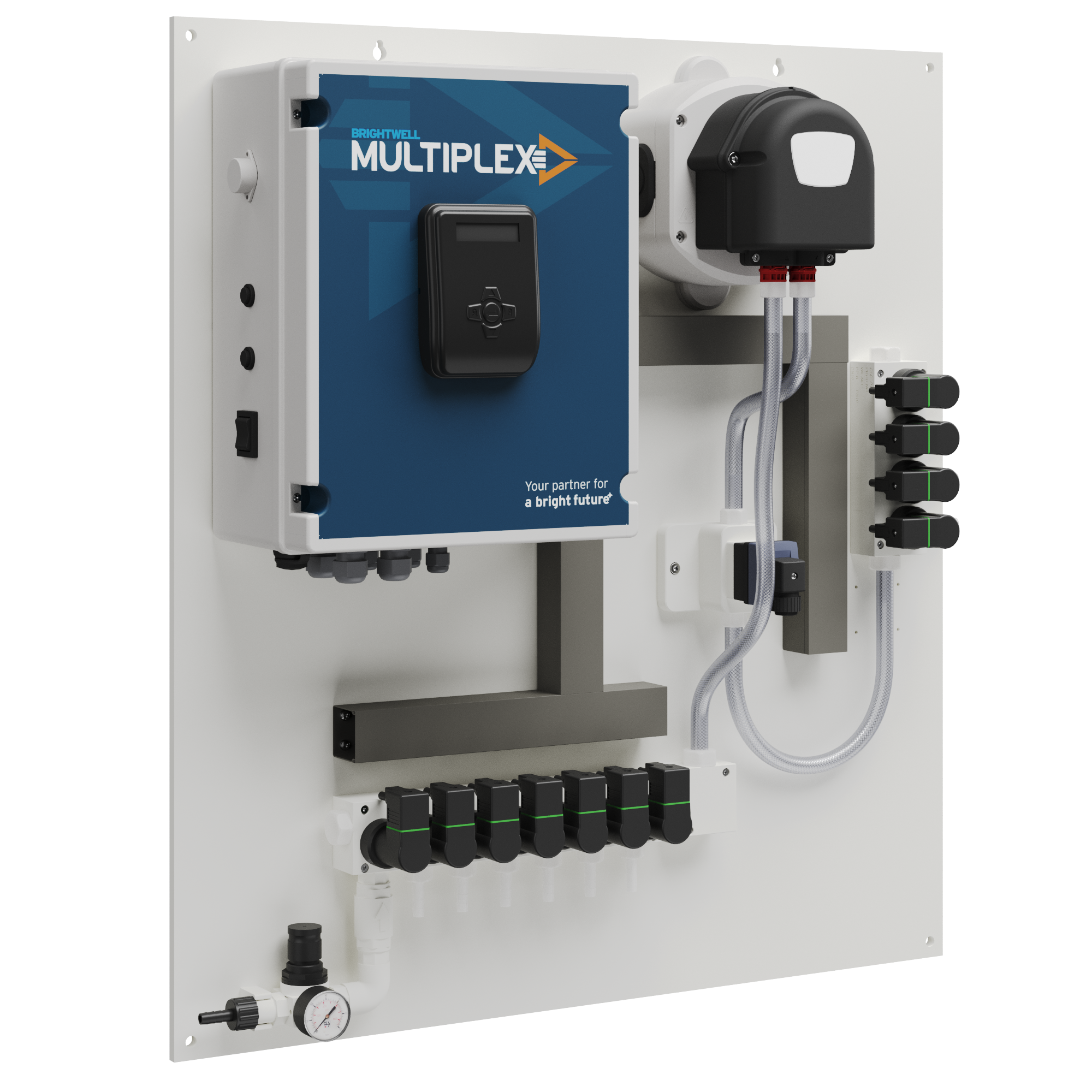

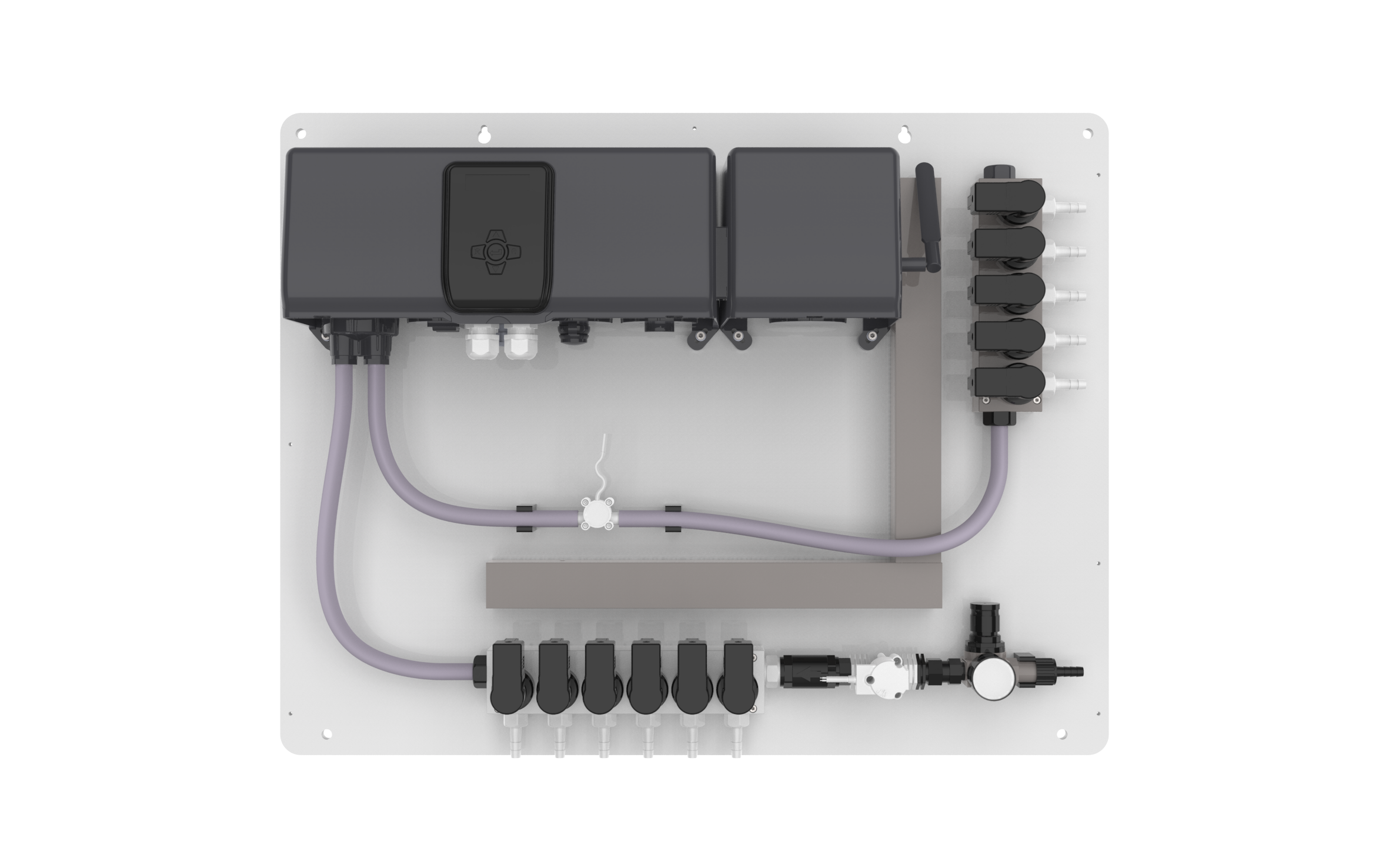

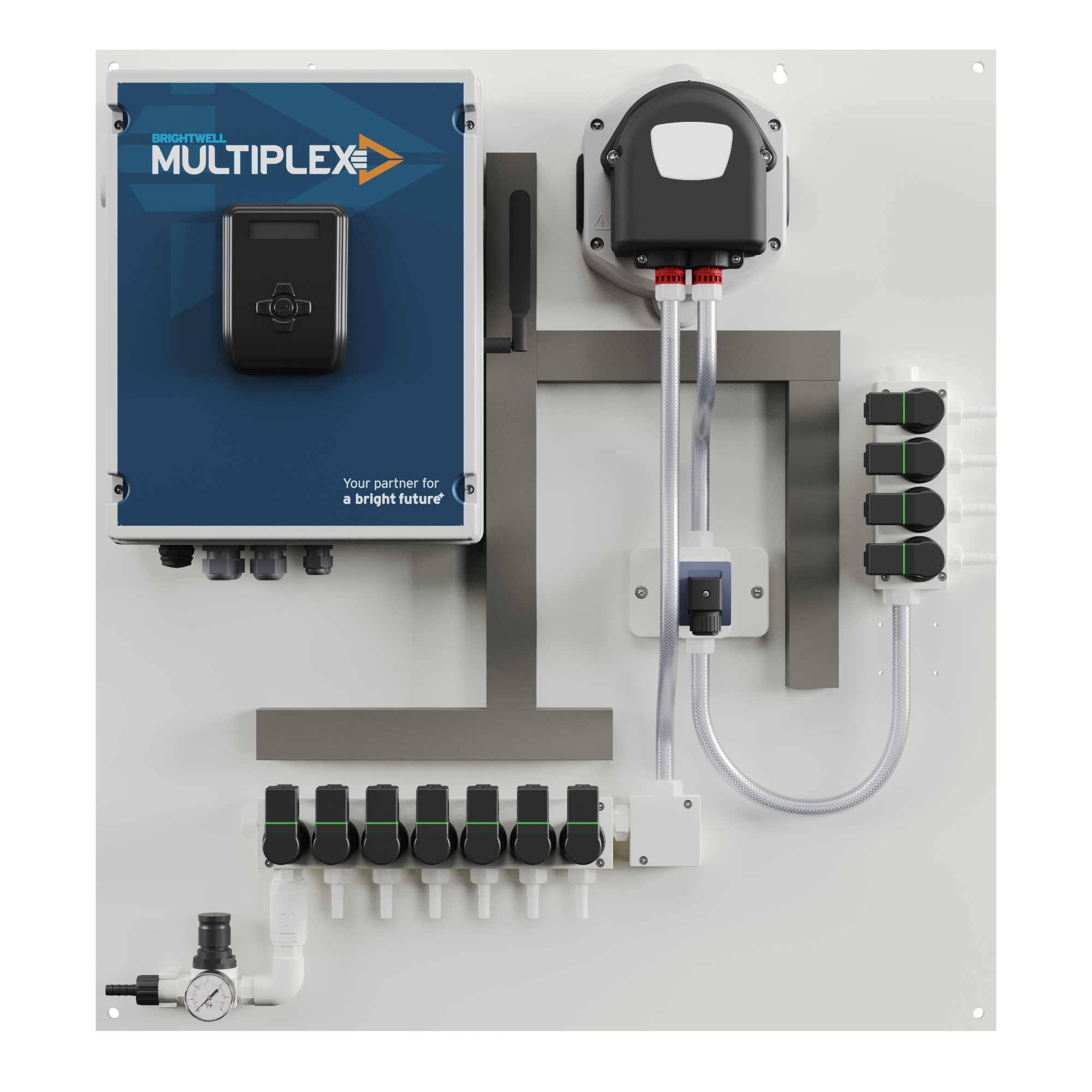

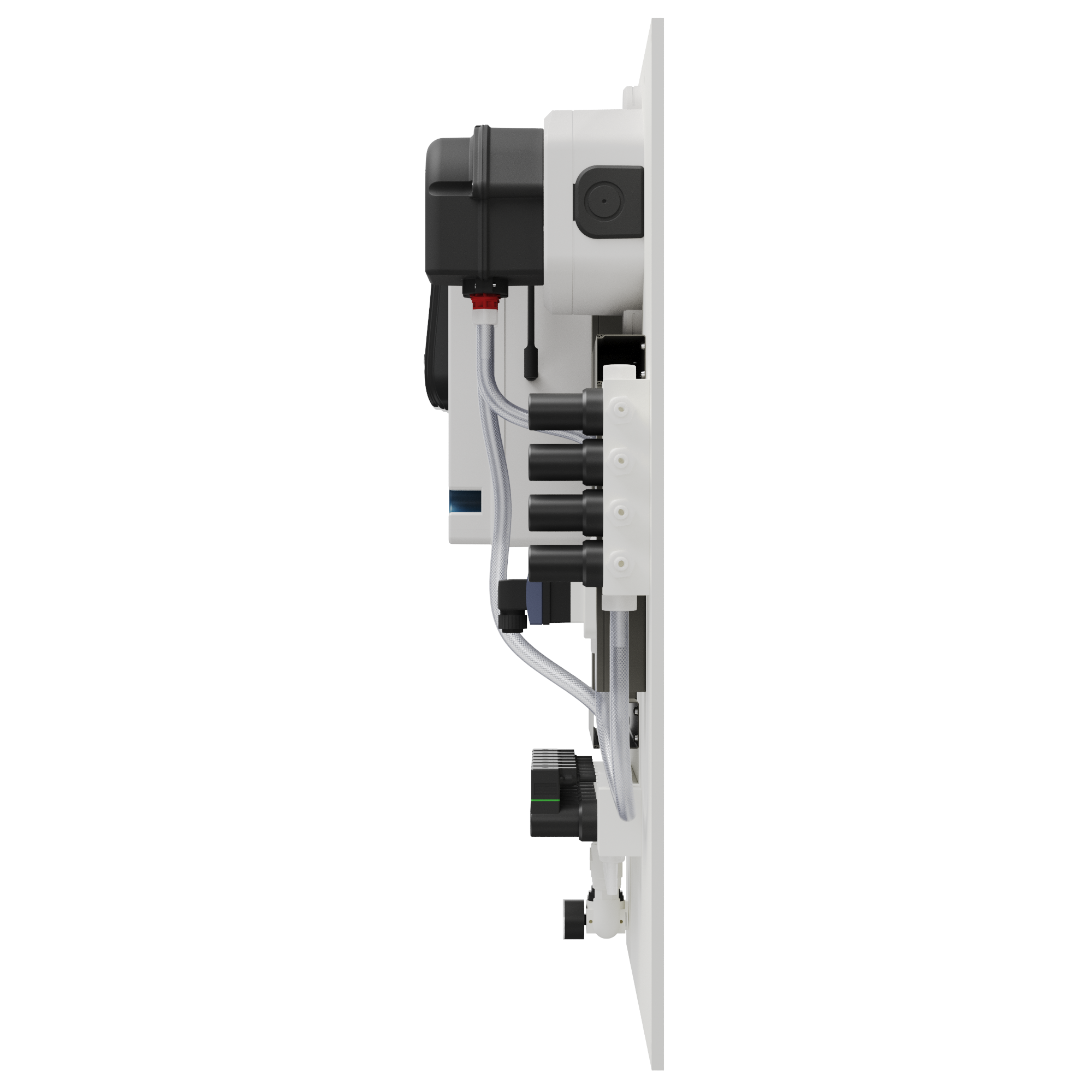

Multiplex 1
Centralized industrial laundry dosing system for up to 5 washing machines
Its compact design, space-saving makes is the ideal solution for small to medium-sized industrial laundries, laundromats and similar facilities. Capable of dispensing up to 6 chemicals, it supports a daily production capacity of up to 1000 kg with a pump flow of 1,5 L per minute. The system includes an integrated distribution manifold, pressure regulator and paddle wheel flowmeter for precise and reliable performance.
Optional accessories: pressure regulator and/or paddle wheel

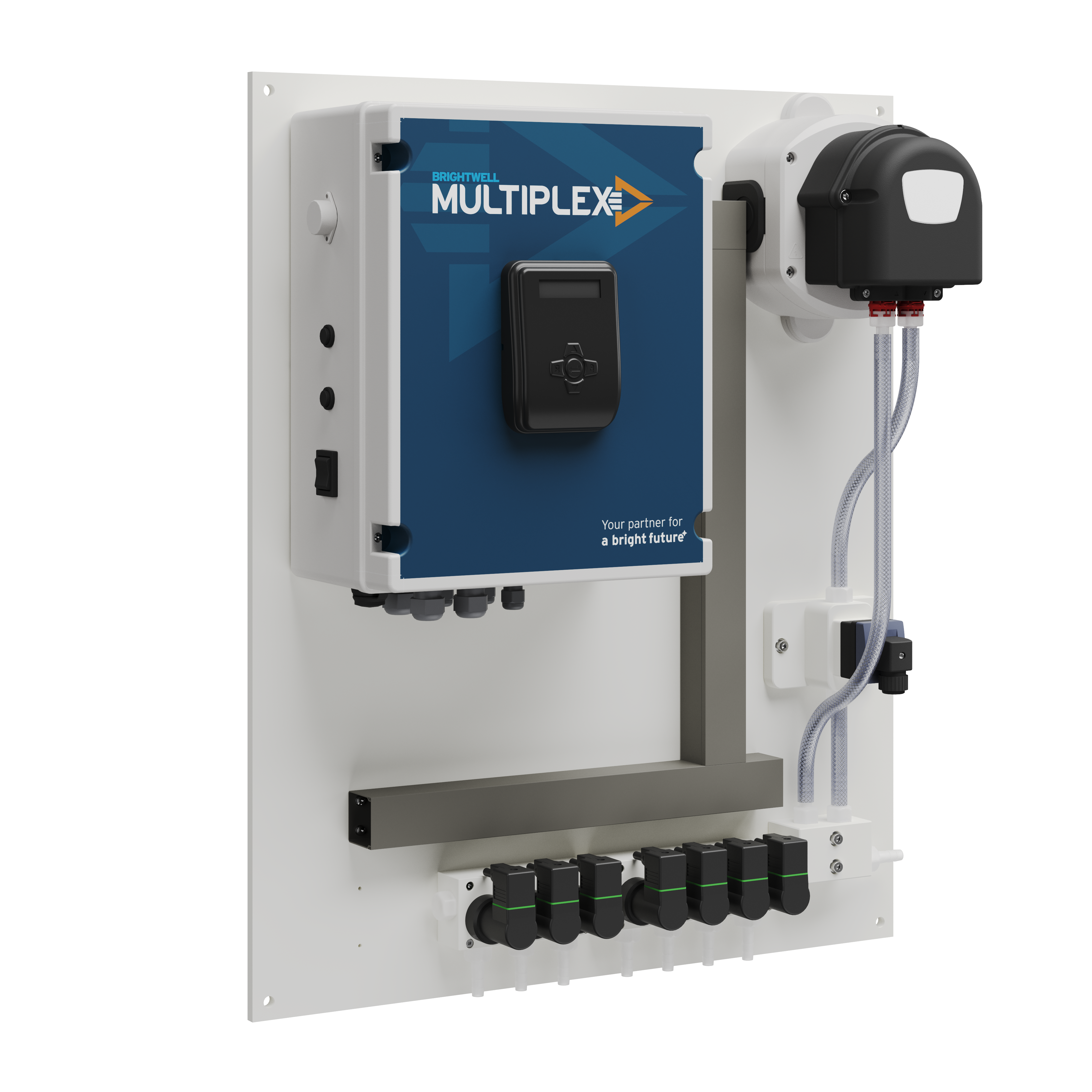

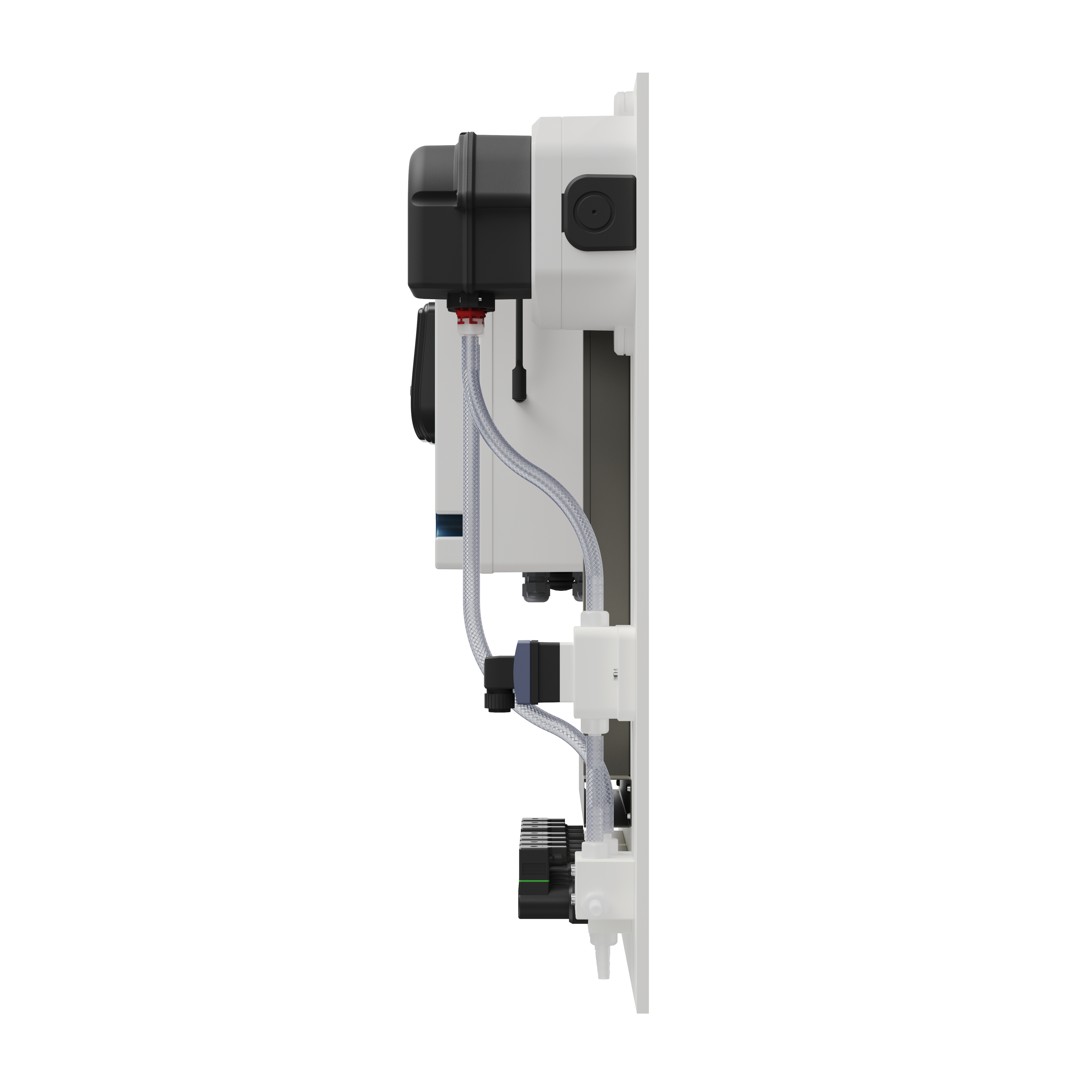

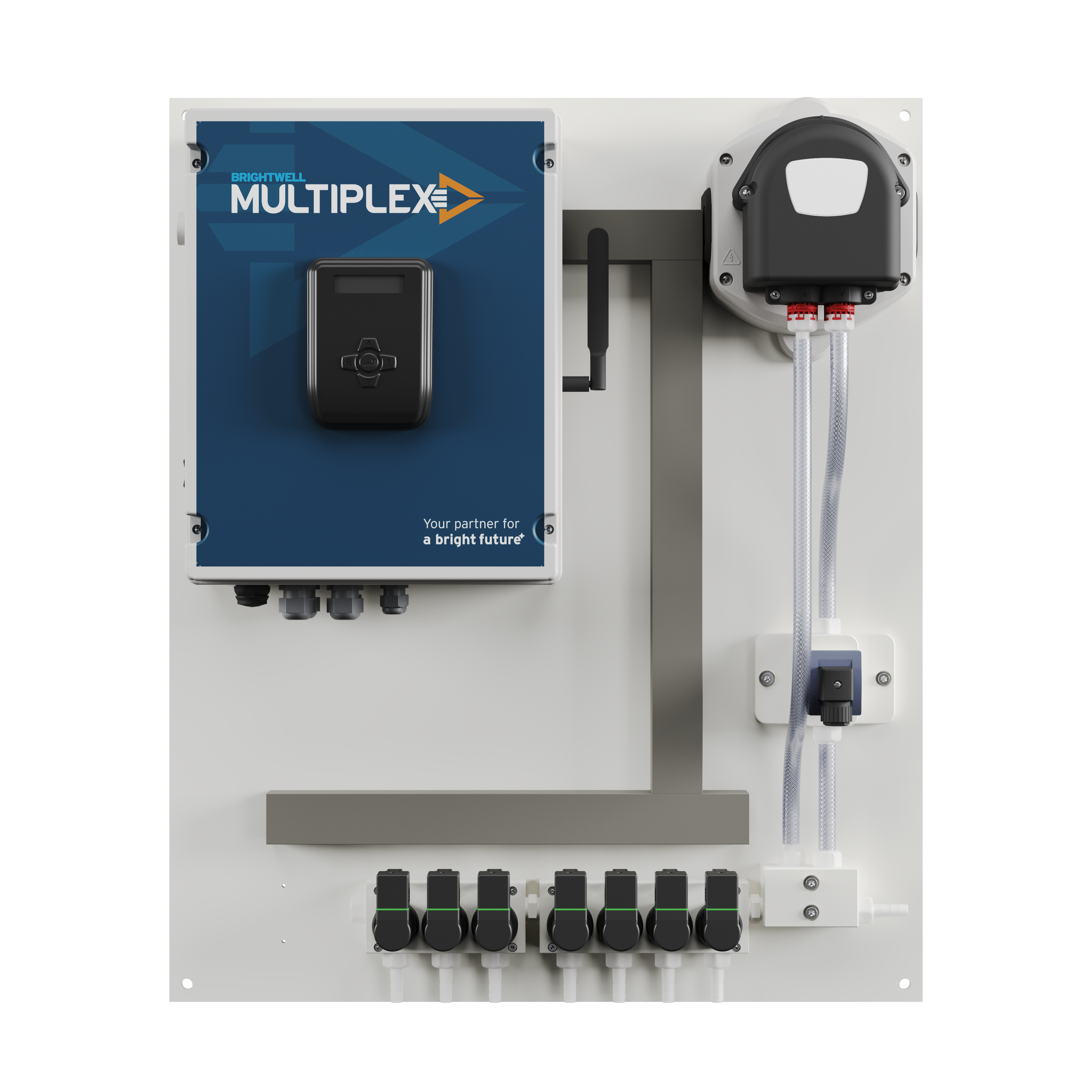

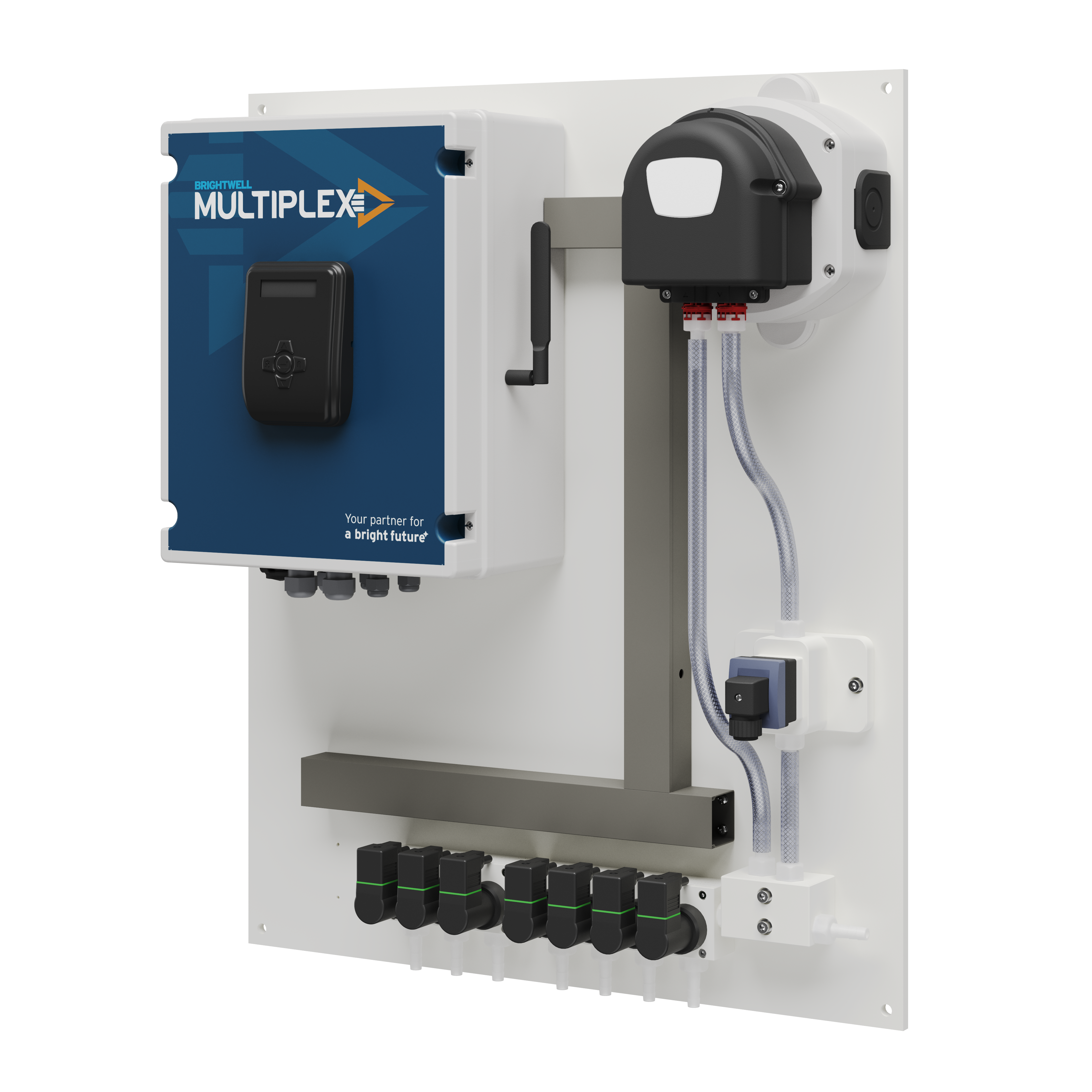

Multiplex 1 pro
Ideal for medium size industrial laundries, with its modular and scalable design adapts to different installations, combined with external distribution manifold or expansion channels. Capable of supporting up to 8 washing machines and dispensing up to 8 chemicals, with a daily production capacity up to 1,800 kg. Choose from different pumps options, including electric pumps of 1,5 L/min or pneumatic pump, with a flow rate of 2,5 L/min, to suit your specific needs.
Optional accessories: Oval gear

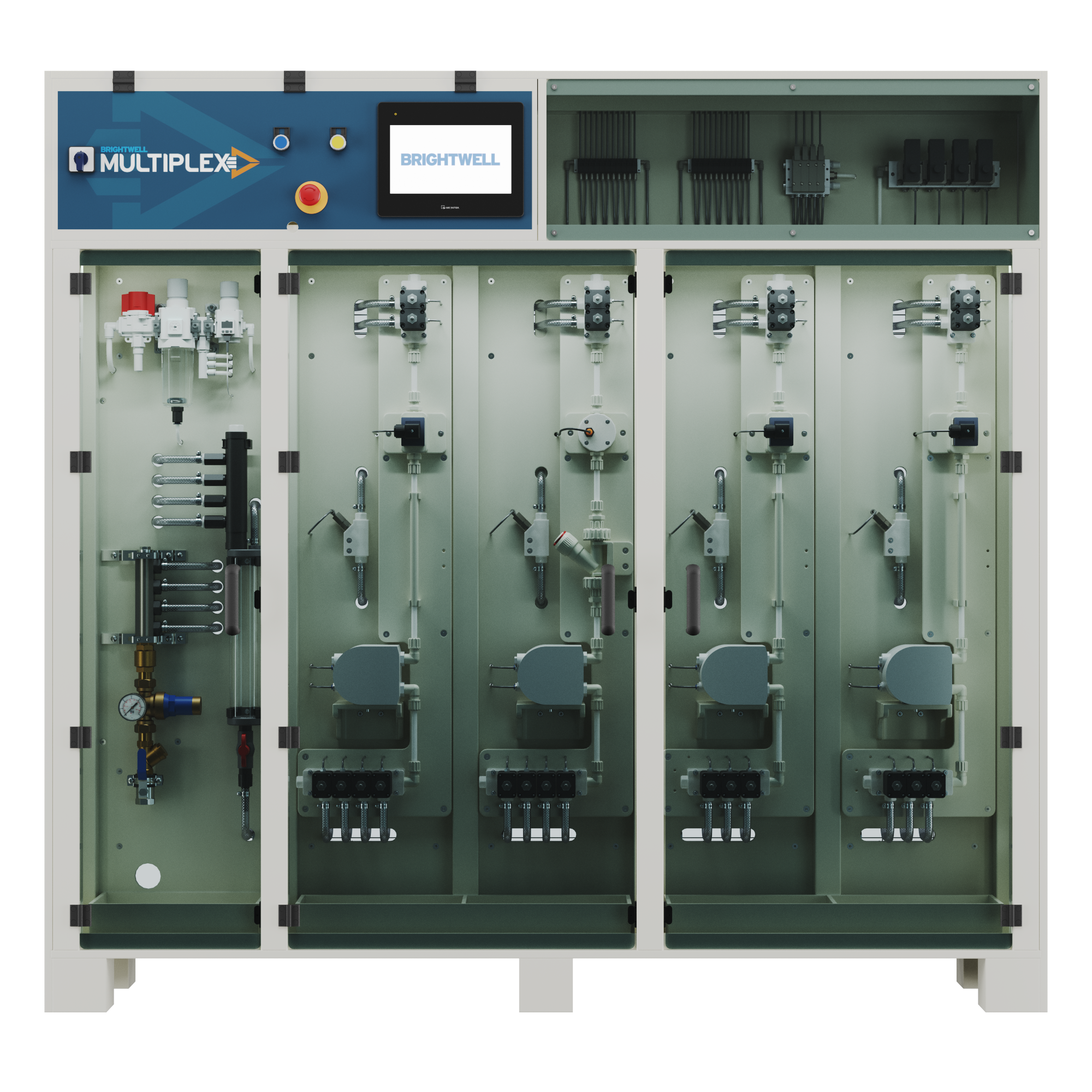

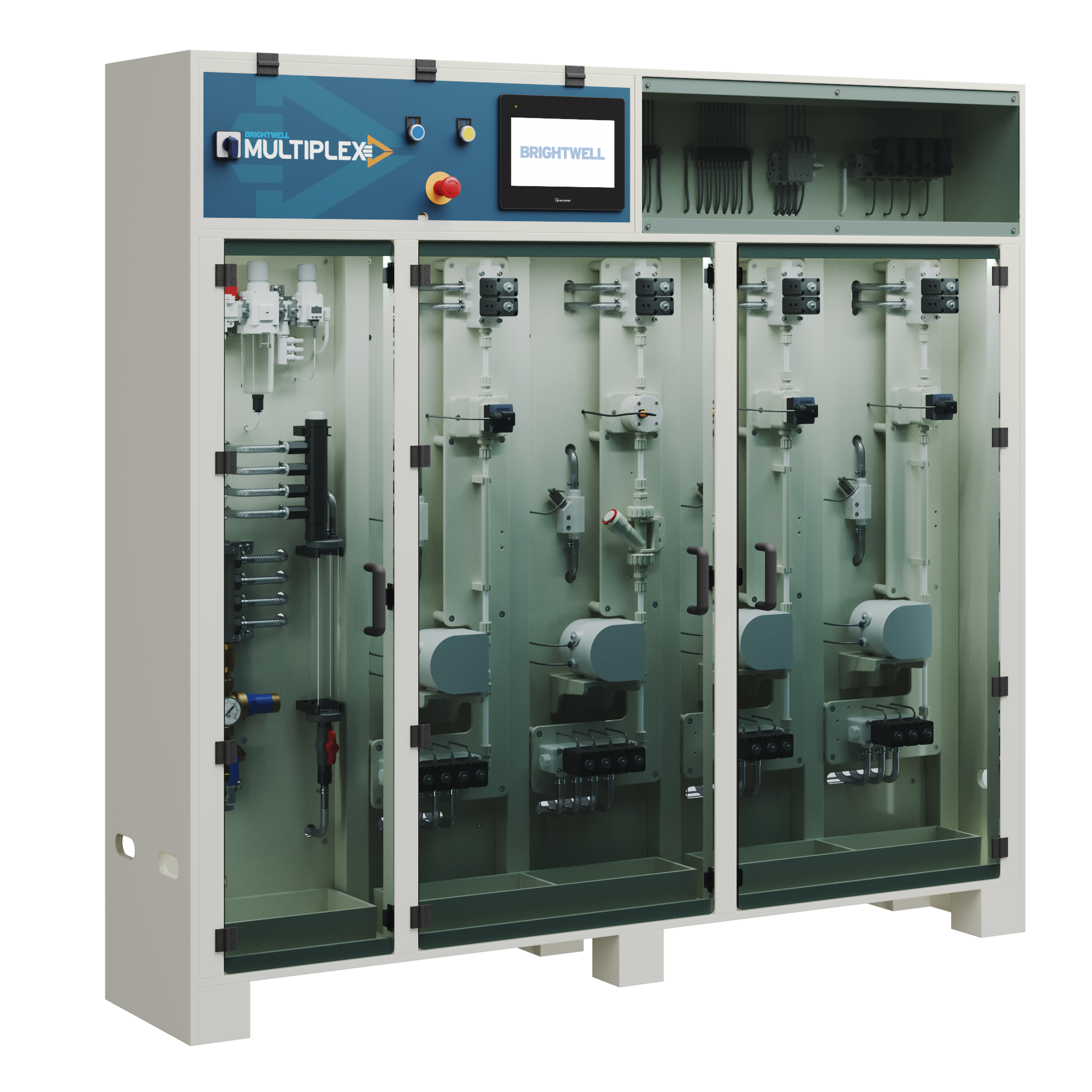

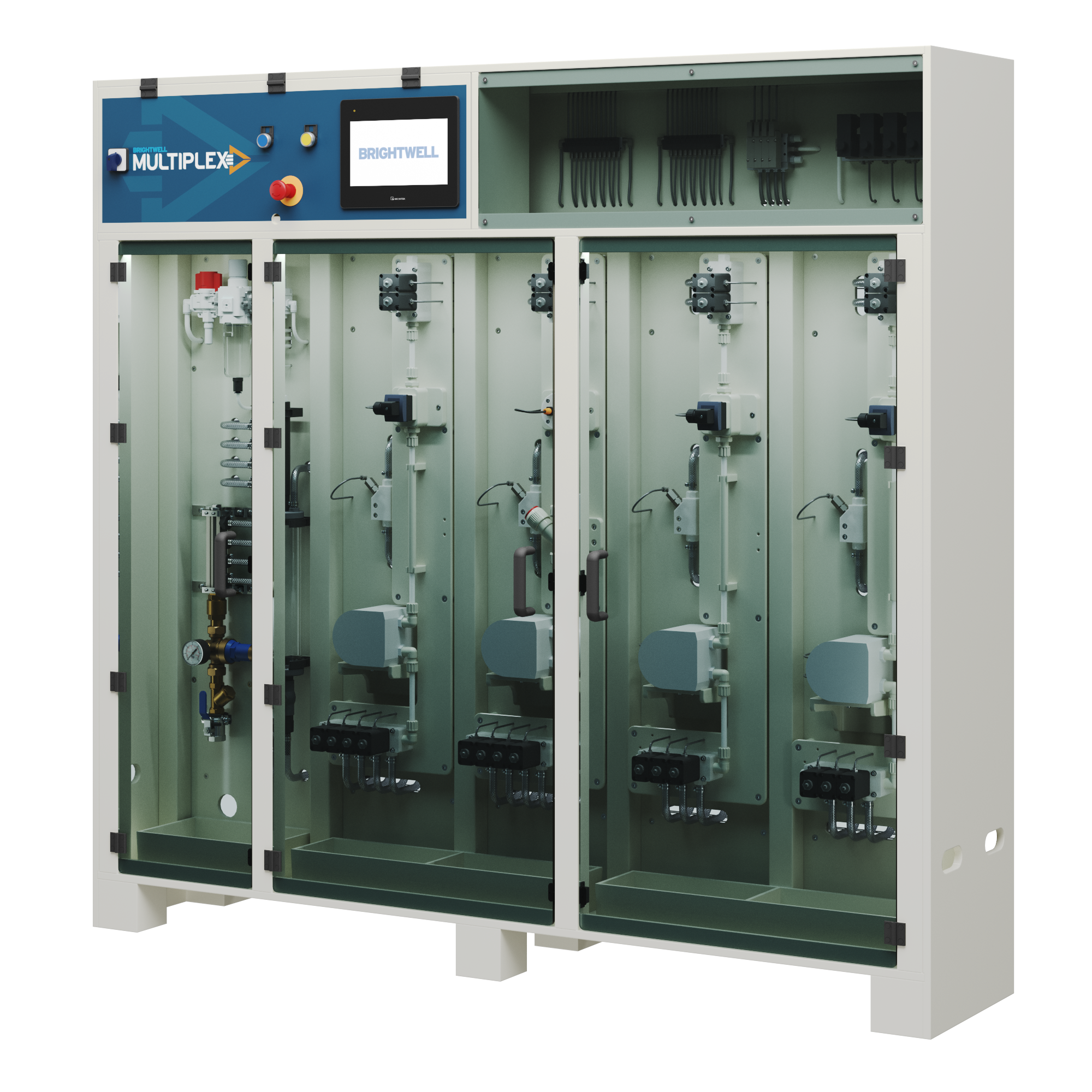

Multiplex Tunnel
Specially designed for continuous batch washers. This system is tailored and fully configurable to meet the unique needs of every washing tunnel. Designed as a floor-mounted unit, the main system includes 4 channels and can be easily expanded with additional units, each providing 2 more channels for additional injection points

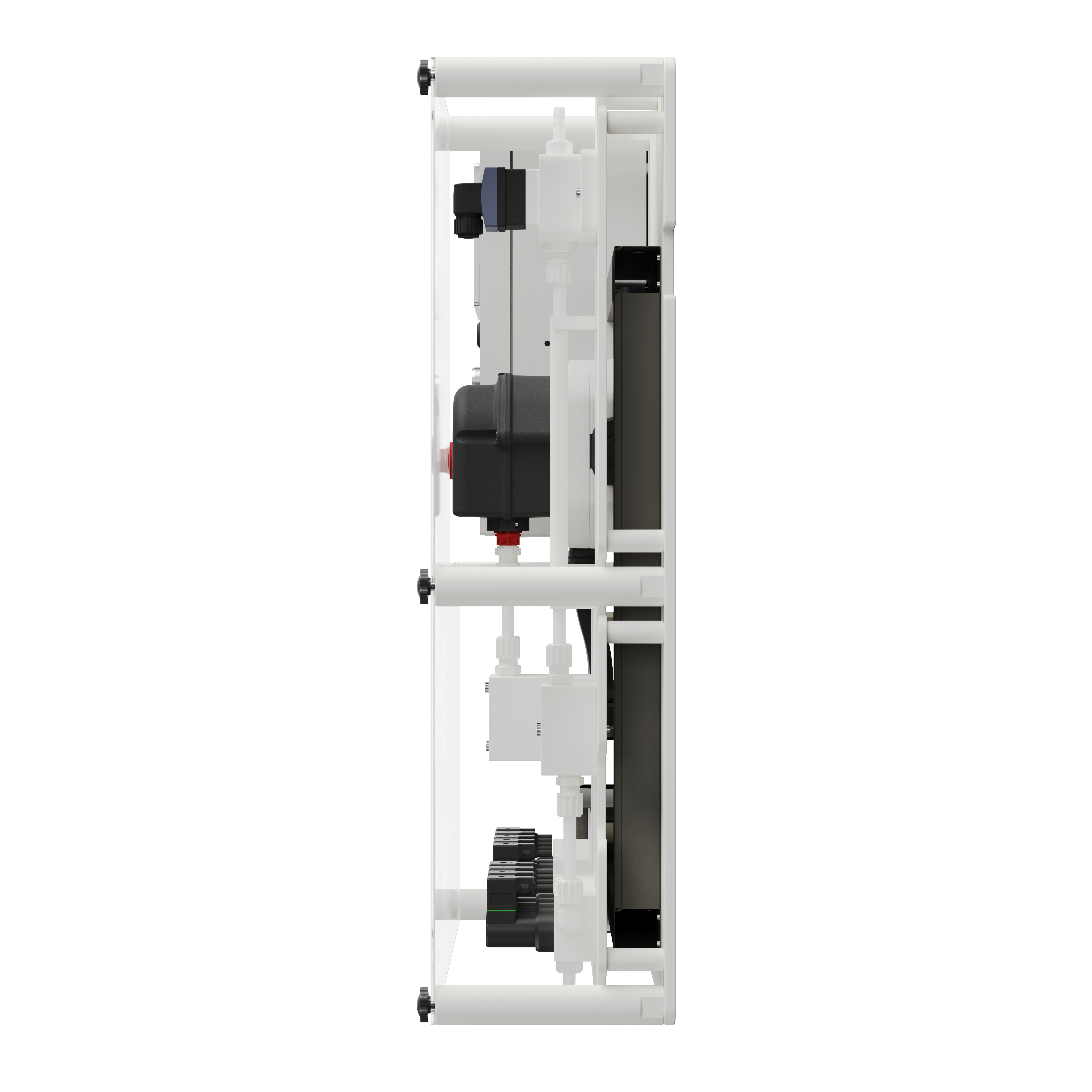

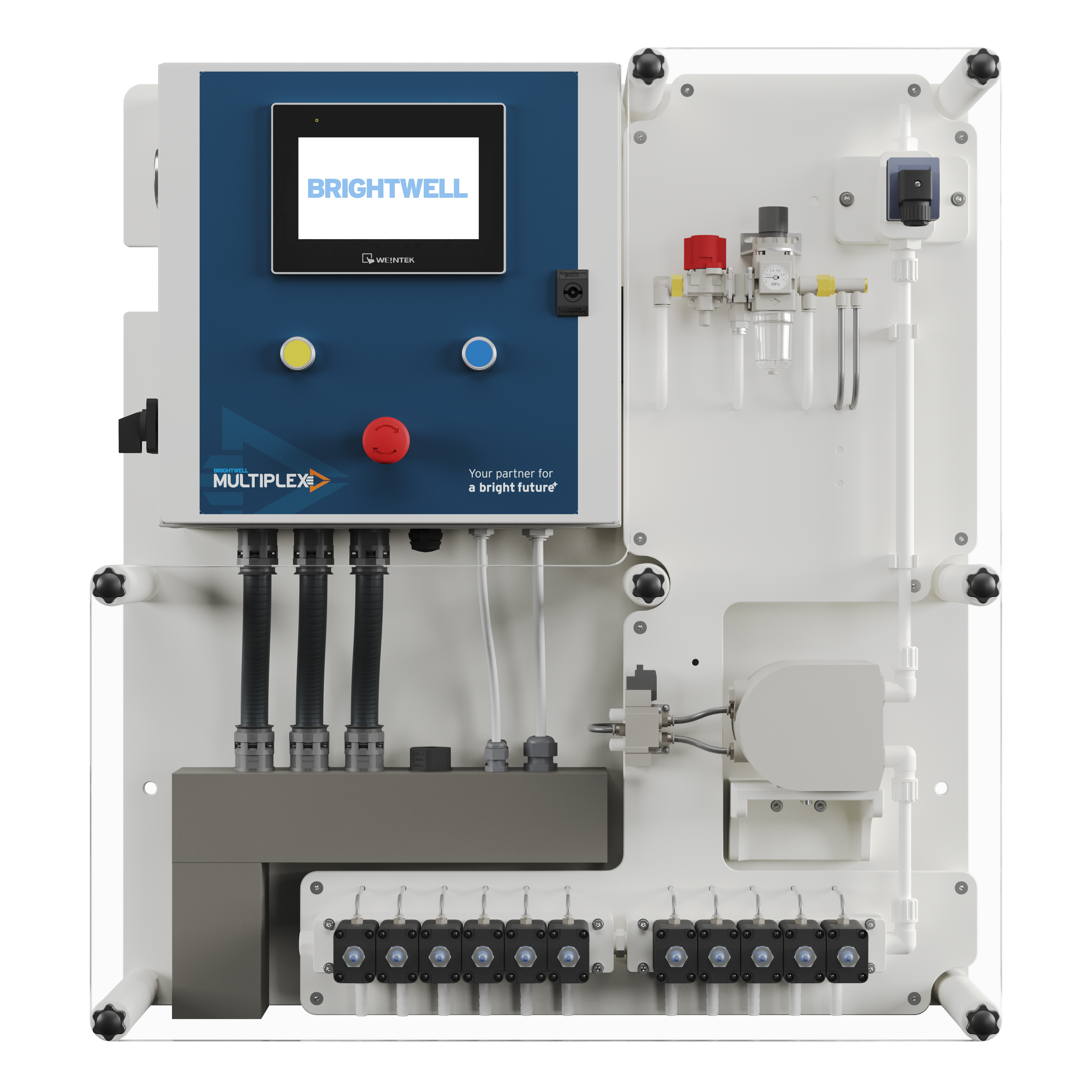

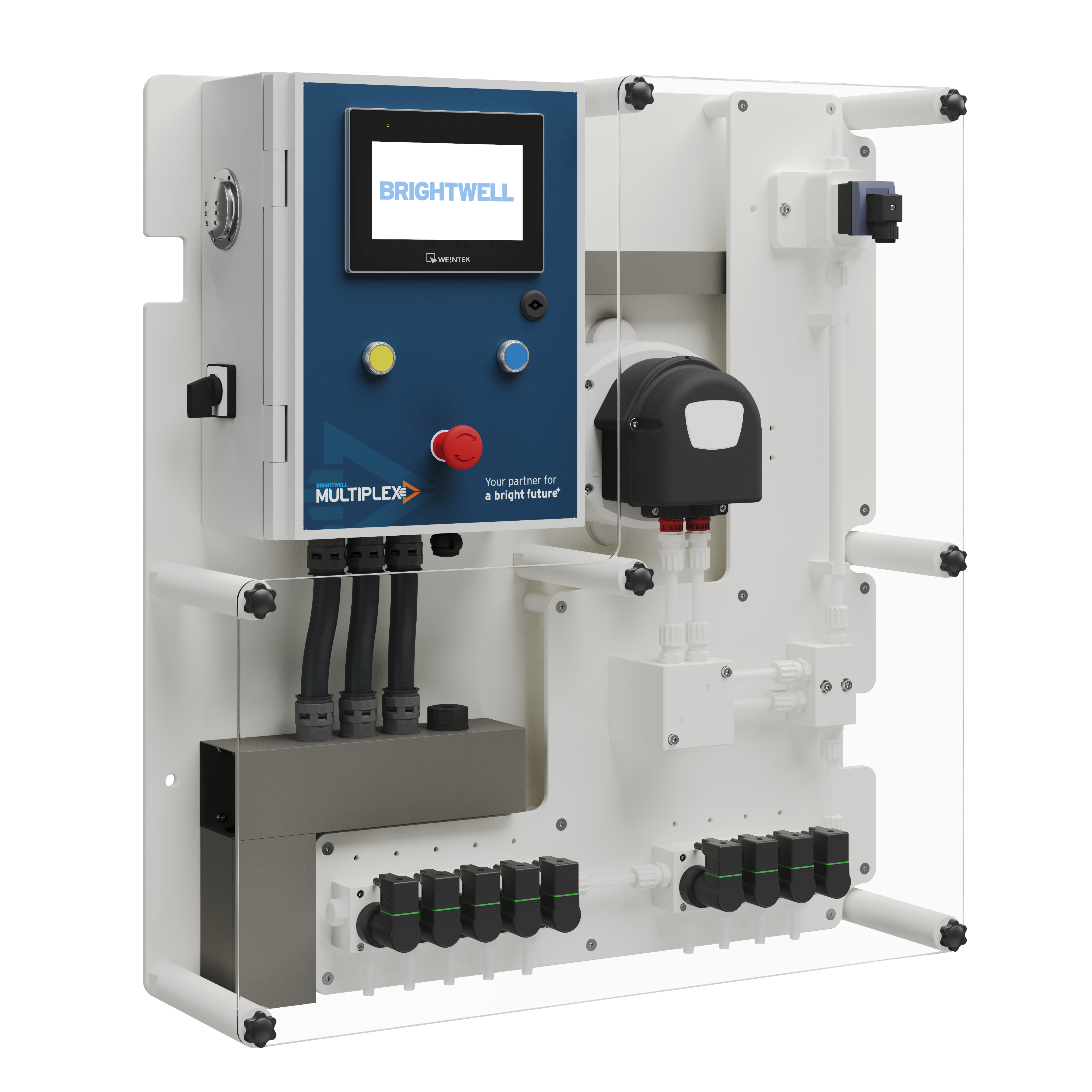

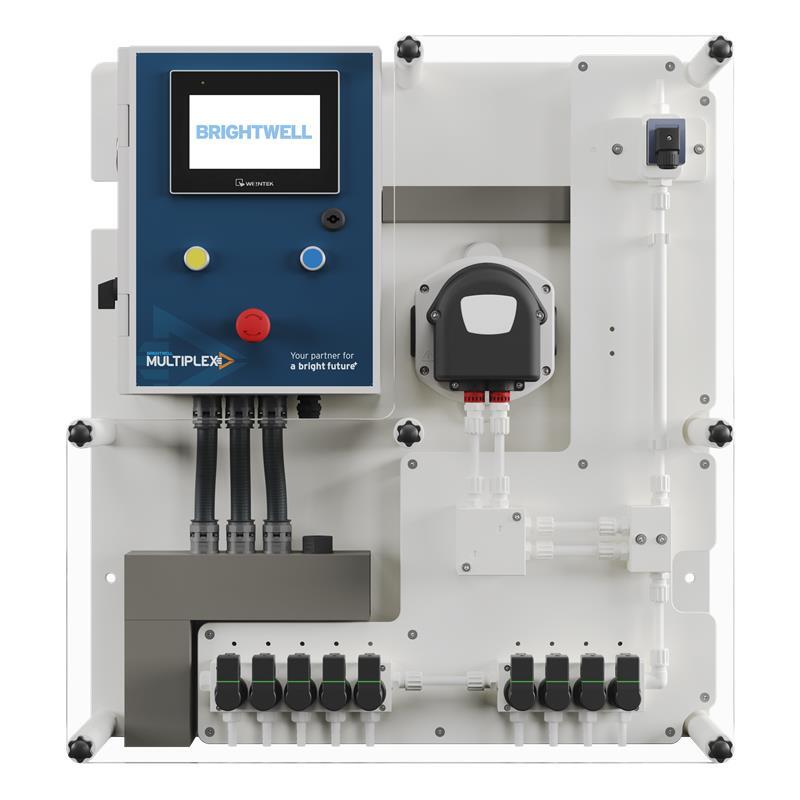

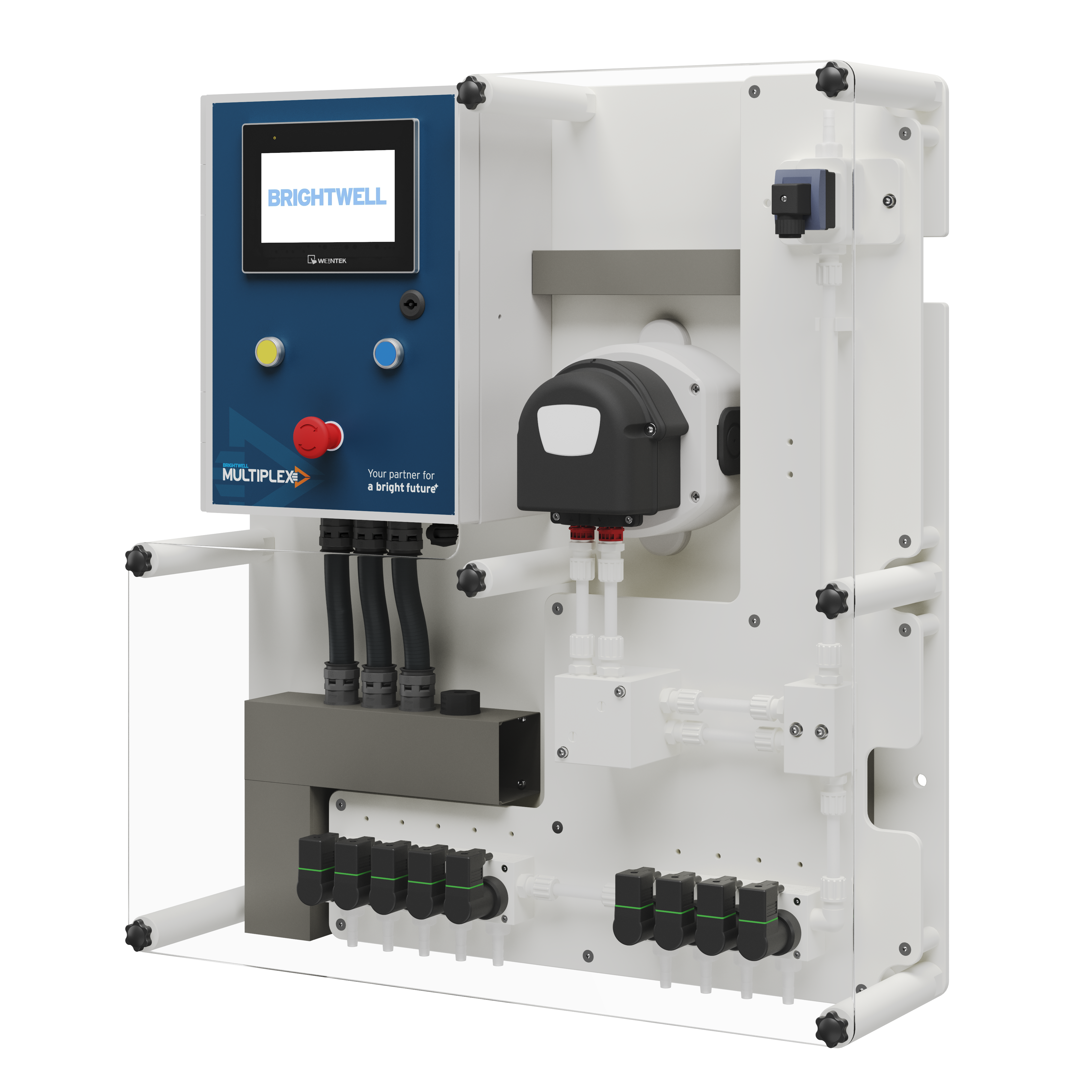

Multiplex 2 pro
Ideal for large industrial operations, this modular unit is designed for maximum flexibility, featuring an onboard touch screen, flow meter control, and can be combined with additional channels and external distributor, with pneumatic or electric valves. It can handle up to 12 washing machines with a production of 4.000 kg/day. Users can choose between an electric or pneumatic pump with flow rates of either 1,5 L/min or 5 L/min, to meet their specific operational needs.
Optional accessories: Oval gear
Comparison Matrix
To help you select the best option for your needs, the table offers a clear summary
of the multiplex range options, configurations, and key specifications.
Costs savings with modularity
Intelligent library and digital services
Reduced maintenance and downtime
Modularity
Optimise your setup by expanding with additional channels to the central unit, saving space and lowering investment costs.
Select from a variety of configurations accommodating up to 12 machines and offering a choice of up to 10 chemical options.
Multiplex, the intelligent large-scale dosing
Multiplex – Digital services
Laundry management with superior digital services tailored
for high-volume chemical dosing and comprehensive
digital features ensuring efficient operation and safety
across diverse industrial environments.
Reporting features
Software features & benefits
Advanced product catalogue
Valuable insights with reporting features
- Optimize Your Operations: Analyse Overall Equipment Effectiveness (OEE) with visual comparisons to identify areas for improvement.
- Drill down for details: Conduct program and washer analysis, and review daily program reports to pinpoint efficiency gains.
- Troubleshoot with ease: Leverage breakdown views for swift troubleshooting and problem resolution.
- Maintain control: View machine dosage programs and track dosage usage directly on-screen.
Accessories
Pneumatic distributor
Our distributor ensures precise control of chemical in our Multiplex industrial laundry dosing systems, enabling accurate and efficient chemical dosing. Using compressed air to operate the valves are designed for durability and performance boosting the efficiency and reliability of your laundry operations, ensuring optimal cleaning performance
Signal box
It is required in a Multiplex install and enables important features like AFS (auto formula select) and machine pausing. It acts as a communication unit between the dosing unit and the washers, carrying important information like dosing triggers and wash program information.
Air pressure box
The box regulates pressure used for air flushing and has been purpose designed for use within the laundry environment. Adding an air pressure box is a key tool for sites that require faster chemical delivery.
Measuring vase
A measuring vase is a specialised container used to measure precise quantities of liquid chemicals. This tool is used to simplify the calibration process, calibration is a key process for ensuring safe, high quality wash results.
Booster tank
Designed to increase the efficiency and capacity of your dosing unit, the booster tank ensures a consistent and reliable supply of water. Its durable construction and easy integration make it a valuable upgrade for maintaining optimal dosing performance in high-volume laundry operations.
